auto claves
Autoclave-Double Wall (Vertical)
Model: MA-10DTechnical Specifications
Double Wall Construction, inside & outside made of Stainless Steel 304, with Stainless Steel Basket. Radial Locking System (chrome plated) and paddle lifting, with water level arrangement. Lid made of Stainless Steel 304 plate. Provided with built-in safety valve, pressure gauge, pressure release valve. With Automatic Pressure Switch, pressure is adjustable from 5 to 20 psi ± 1 psi. Suitable to operate on 220V, single phase AC supply.
| Diameter (mm) | 250 | 300 | 350 | 450 | 550 |
|---|---|---|---|---|---|
| Depth (mm) | 450 | 500 | 550 | 600 | 750 |
| Model | Construction | Pressure Range | Accuracy | Locking System | Power Supply |
|---|---|---|---|---|---|
| MA-10D | Double Wall SS 304 | 5 to 20 psi | ±1 psi | Radial Locking | 220V Single Phase |
Autoclave (Triple Walled) / Dry Steam Sterilizer
Model: MA-10TTechnical Specifications
Triple wall construction, all three walls (inner, jacket, outer) made of Stainless Steel 304 with S.S. Basket. Radial Locking System (chrome plated) and paddle lifting, with water level arrangement. Lid made of Stainless Steel Plate 304. Provided with built-in safety valve, pressure gauge, pressure release valve. With Automatic Pressure Switch, pressure adjustable from 5 to 20 psi ± 1 psi. Suitable to operate on 220V, single phase AC supply.
| Diameter (mm) | 250 | 300 | 350 | 450 | 550 |
|---|---|---|---|---|---|
| Depth (mm) | 450 | 500 | 550 | 600 | 750 |
| Model | Construction | Pressure Range | Accuracy | Locking System | Power Supply |
|---|---|---|---|---|---|
| MA-10T | Triple Wall SS 304 | 5 to 20 psi | ±1 psi | Radial Locking | 220V Single Phase |
Optional
- Automatic Low Water Level Cut Off
- Digital Automatic Temp. Controller with Timer (for set sterilization time)
Discover our full range of lab equipment including Furnaces, Shakers, Cabinets, and more. Download our brochure now!
Fully Automatic Deluxe Autoclave (Vertical)
Model: MA-10FATechnical Specifications
Sturdy double walled construction with boiler/inner chamber made of Stainless Steel 304 sheet, outer duly polished. Lid made of Stainless Steel plate 304, tightened by radial locking system (chrome plated) with paddle lifting. Fitted with microprocessor based temp. controller having 16 x 2 Character LCD display. Enables automatic purging of cold air, sterilizing hold time, and cycle end with automatic exhaust of pressure. All steps are user settable, cycle completes without human intervention.
| Diameter (mm) | 250 | 300 | 350 | 450 | 550 |
|---|---|---|---|---|---|
| Depth (mm) | 450 | 500 | 550 | 600 | 750 |
| Model | Construction | Controller | Locking System | Operation | Power Supply |
|---|---|---|---|---|---|
| MA-10FA | Double Wall SS 304 | Microprocessor LCD | Radial Locking | Fully Automatic | 220V Single Phase |
Features
- Automatic purging of cold air
- Automatic sterilizing hold time
- Cycle end with automatic exhaust
- User settable steps
- Low water level cut off
- Spring loaded safety valve
- Includes S.S. basket
High Pressure Horizontal Sterilizer / Autoclave
Model: MA-10HTechnical Specifications
Triple walled construction with steam jacket and separate boiler. Inner chamber and steam jacket made of Heavy gauge S.S. 304 sheet, outer chamber of mild steel. Sterilizer has single piece S.S. 304 door, mounted on tubular steel frame with ground leveling feet. All sterilizers hydraulically tested up to 2.5 times working pressure. Outer jacket wrapped with asbestos sheet or glass wool to minimize heat loss.
| Model | Construction | Operating Temp | Sterilizing Pressure | Power Supply | Safety Features |
|---|---|---|---|---|---|
| MA-10H | Triple Walled SS 304 | 121°C / 134°C | 1.2 to 1.5 kg/cm² (15-22 psi) | 415V, 3ph, 50Hz | Triple Safety System |
Features
- Steam generator made of heavy Stainless Steel 304
- Pressure Control Device (Piezostat)
- Flanged type immersion heating elements
- Hinged radial-locking safety door
- Single point control with multiport valve
- Digital temp/pressure indicator
- Automatic purge of air before sterilization
- Two speeds of steam exhaust: fast & slow
- Automatic condensate discharge
- Vacuum breaker to prevent vacuum
- Automatic low water level cut off

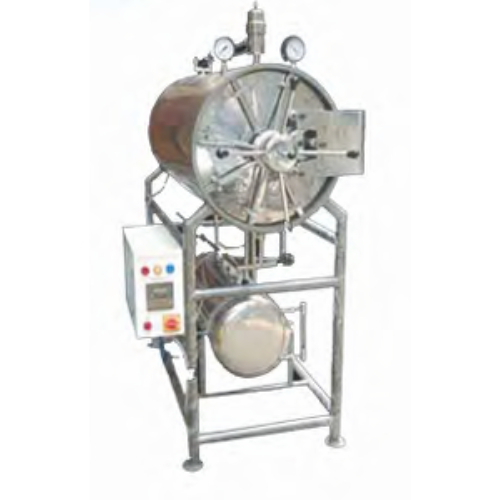

High Pressure Horizontal Sterilizer / Autoclave (Advance)
Model: MA-10HR (Advance) / MA-10H (Advance)Technical Specifications
Designed for bulk sterilization in Medical, Agricultural & Pharmaceutical Institutions. Triple walled with steam jacket & separate boiler. Inner chamber & steam jacket made of Heavy gauge S.S. 304 with leak proof argon-arc welding. Hydraulically tested to withstand 2.5 times working pressure. Mounted on tubular steel frame with ground leveling screws. Outer jacket wrapped with asbestos sheet/glass wool, covered by polished Stainless Steel 304.
| Model | Construction | Sterilizing Temp | Controller | Pressure Control | Safety Features |
|---|---|---|---|---|---|
| MA-10HR / MA-10H | Triple Walled SS 304 | 121°C / 134°C | Microprocessor with HMI | PIEZOSTAT | Triple Safety System |
Features
- Steam generator made of heavy Stainless Steel 304
- Flange type S.S. heating elements
- Automatic low water level cutoff device
- Single piece S.S. 304 door with hinged radial-locking
- Microprocessor with HMI facility and datalogger
- Recording facility with printout on PC/printer
- Moisture trap in chamber discharge line
- Automatic vacuum breaker
- Plug system prevents discharge line choking
- Dial thermometer/digital temp. indicator
Fully Automatic Horizontal Sterilizer / Autoclave
Model: MA-10H (FA)Technical Specifications
Similar to Horizontal model Autoclaves (MA-10H) but fitted with Microprocessor based temp. controller. Enables automatic purging of cold air, sterilizing hold time and cycle end with automatic exhaust of pressure. All steps are user settable. Cycle is completed without any human intervention. Also fitted with low water level arrangement, solenoid valves and other accessories. Suitable to operate on 415V, 3phase AC supply.
| Model | Controller | Operation | Power Supply | Features |
|---|---|---|---|---|
| MA-10H (FA) | Microprocessor | Fully Automatic | 415V, 3phase | Auto Purging & Exhaust |
Rectangular Horizontal Sterilizer Capacity
| Capacity (Ltr.) | Length (mm) | Height (mm) | Depth (mm) |
|---|---|---|---|
| 180 | 450 | 450 | 900 |
| 200 | 600 | 450 | 900 |
| 300 | 600 | 600 | 1200 |
| 400 | 600 | 600 | 1500 |
| 972 | 900 | 900 | 1200 |
| 1215 | 900 | 900 | 1500 |
Cylindrical Horizontal Sterilizer Capacity
| Capacity (Ltr.) | Dia (mm) | Depth (mm) |
|---|---|---|
| 75 | 400 | 600 |
| 150 | 500 | 900 |
| 175 | 500 | 1050 |
| 240 | 600 | 1050 |
| 285 | 650 | 1200 |
Optional Attachments
- SS 316/304 Loading / Unloading Trolley Carriage
- Steel (Power Coated) Tubular Transfer trolley for carriage
- Double Door System
- Chamber Inside, Outside, Jacket & Door of Stainless Steel 316 instead 304
- Water Ring Vacuum Pump to create vacuum of 24 inch Hg (at30°C)
- High pressure feed water pump for automatic filling of water into steam generator under pressure
