Incubator Shaker Manufacturer
Orbital Incubator Shaker
Model: MO / MRSTechnical Specifications
| Specification | Details |
|---|---|
| Design | Orbital shaking incubators combining controlled incubation with orbital shaking |
| Construction | Double walls: Exterior M.S. sheet, Interior Stainless Steel 304 |
| Viewing Door | Plexiglass inner door & outer door with toughened glass window, lock & key |
| Air Circulation | Fan maintains uniform temperature with perforated Stainless Steel trays |
| Refrigeration | ISI marked CFC-free compressor for below ambient operation (Refrigerated models) |
| Drive | Triple eccentric counterbalanced drive with permanently lubricated ball bearings |
| Motor | Brushless induction motor, maintenance free |
| Automatic Restart | Restarts at preset speed after power failure |
| Safety | Auto cut-off on temperature overshoot, short circuit protection (MCB / Glass Fuse) |
| Optional Accessories |
|
| Model Variants | MRS-100, MO-100, MO-250, etc., with Refrigerated / Non-Refrigerated options and different capacities |

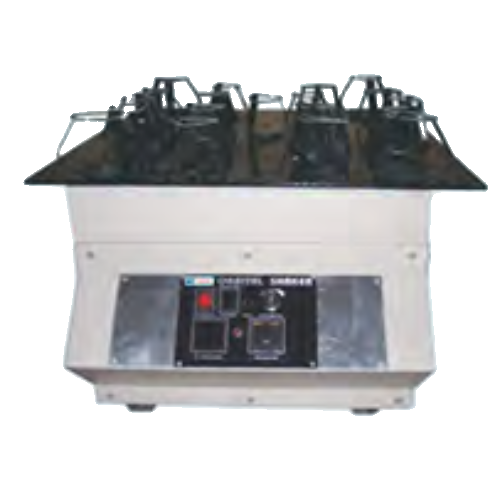

Orbital Shaker (Bench Top)
Model: MRS-100VTechnical Specifications
| Specification | Details |
|---|---|
| Base Assembly | Fabricated from heavy mild steel sections for sturdy, continuous operation |
| Drive Mechanism | Compact counter balanced mechanism ensuring high stability under uneven load |
| Speed Control | Stepless microprocessor frequency control for gentle start/stop and variable speed |
| Motor | Brushless induction drive, practically maintenance free |
| Speed Range | 30 RPM to 300 RPM ±1 RPM with digital RPM display |
| Automatic Restart | Restarts at preset speed in case of power failure |
| Platform Size | 45 × 45 cm universal platform |
| Power Supply | 220V / 50Hz AC |
Discover our full range of lab equipment including Furnaces, Shakers, Cabinets, and more. Download our brochure now!
Refrigerated Stackable Incubator Shaker
Model: MSS / MSS (Advance)Technical Specifications
| Specification | Details |
|---|---|
| Construction | Double wall: GI sheet exterior powder coated, interior stainless steel 304 mirror finish |
| Inner Door | Plexiglass for inspection without disturbing temperature |
| Outer Door | Double glass window with lock & key |
| Air Circulation | Fan ensures uniform temperature; perforated stainless steel adjustable trays |
| Refrigeration | ISI marked CFC free compressor (for refrigerated models) |
| Illumination | Fluorescent tube 30cm (2 Nos.), cyclic timer, optional UV light (1 No.) |
| Shaking Motion | Orbital with variable frequency drive (gentle start & stop) |
| Temperature Range | 5°C to 60°C ± 0.1–0.4°C (optional up to 80°C) |
| Speed Range | 20 to 300 RPM (optional up to 400 RPM) |
| Process Control - Advance |
|
| Process Control - Basic |
|
| Safety Features |
|
Water Bath Incubator Shaker
Model: MMI / MMOTechnical Specifications
| Specification | Details |
|---|---|
| Construction | Mild steel outer body (powder coated), Stainless steel 304 inner chamber, effective insulation between chambers |
| Temperature Control | Microprocessor PID controller with dual display (process & set value) |
| Shaking Motion | Variable speed motor; tray moves on four wheels/balls (Reciprocating) or Eccentric Cam (Orbital) |
| Speed Display | Digital RPM indicator |
| Refrigeration / Heating | Refrigerated model: CFC-free hermetically sealed ISI compressor; Above ambient: Stainless steel immersion heaters |
| Bath Accessories | Stainless steel pyramidal lid and drain plug included |
| Optional Shaking Racks |
|
Sieve Shakers
Model: MRT-900 / MGS-80Technical Specifications
| Specification | MRT-900 | MGS-80 |
|---|---|---|
| Type | RO - TAP | Gyratory |
| Motion | Circular & Tapping action | Vibration by eccentric cam & springs |
| Mounting | Floor (Heavy Duty) | Floor / Bench Top (Light Duty) |
| Motor | ½ HP AC, Single Phase | ¼ HP AC, Single Phase |
| Speed | Fixed Speed | Fixed Speed |
| Sieves | 20 cm Dia × 6 no. | 20 cm Dia × 6 no. |
| Timer | 0 – 60 min mechanical Timer | 0 – 60 min mechanical Timer |
Accessories
Sieves made in jointless brass frame of 20 cm × 5 cm (Dia × Height) for different mesh sizes, as per ISS / BSS / ASTM standards.
Fluccolator (Jar Test Apparatus)
Model: MFJ-6 / MFJ-4Technical Specifications
- Fluccolator (Jar Test Apparatus) for Four/Six jars of 1 Litre capacity.
- Speed control from 20 to 120 RPM ±10 RPM.
- Stirrers driven by PMDC motor with V-belt & pulley drive.
- Mounted on a sturdy angle iron frame with stainless steel side support rods and lifting knobs.
- Stainless Steel stirring paddles can be disengaged individually without interruption of other stirrers.
- Spacing between rods permits use of 1000 ml glass beakers resting on illuminated white acrylic sheet.
- Digital speed indicator provided.
- Suitable for 220 Volts, 50 Cycles AC supply (without beakers).
Technical Data
- Model MFJ-6: 6 × 1000 ml, Speed 20–120 RPM ±10 RPM
- Model MFJ-4: 4 × 1000 ml, Speed 20–120 RPM ±10 RPM
Ball Mill
Model: MLB - 181Technical Specifications
- Laboratory Ball Mill designed for efficient mixing and grinding operations.
- Electrically operated with capacity ranging from a few grams up to 1 kilogram.
- Fitted with a variable speed DC gear motor offering maximum speed up to 100 RPM.
- Jar made of Stainless Steel (SS 304) with internal SS 304 ribs — easily removable for cleaning.
- Supplied with stainless steel balls of 10 mm diameter for mixing and grinding powders.
- Jar is interchangeable, lightweight, and compact for convenient handling.
- Operates on 220 Volts, 50 Hz AC supply only.
Willy Mill
Model: MLB-179 A / B / CTechnical Specifications
- Equipped with two stationary blades and a rotor having four cutting edges.
- Rotor revolves at high speed to produce efficient shearing action, minimizing moisture loss due to heat.
- Available in three sizes to suit various laboratory requirements:
- A) Small – fitted with ½ HP Motor
- B) Medium – fitted with 2 HP Motor
- C) Large – fitted with 1 HP Motor
- Supplied with interchangeable mesh sieves of 20, 40, and 60 sizes.
