Air Flow Bench
Laminar Air Flow Bench (Wooden)
Model: MLA-100Technical Specifications
Bench made of thick ply board, reinforced with teak wood where required. All visible surfaces laminated with white Decolam Lamination. Filter seat has rubber padding for perfect rubber-to-rubber sealing. Panels made of Perspex sheet, anodized aluminium frame, transparent door. Work table covered with stainless steel 304 sheet. Provides work area conforming to Class 100 of revised US Federal Standards 209-E.
| Model | Construction | Work Table | Pre-Filter | HEPA Filter | Blower | Lighting |
|---|---|---|---|---|---|---|
| MLA-100 | Ply Board with Teak Wood | SS 304 Sheet | 90% efficiency, 10 micron | 99.97% efficiency, 0.3 micron | ¼ HP Electric Motor | Fluorescent + UV Light |
Features
- White Decolam Lamination on visible surfaces
- Rubber padding for perfect filter sealing
- Perspex sheet panels with anodized aluminium frame
- Transparent door
- Corrugated aluminium foil separators & plastic grill
- Dynamically balanced blower assembly
- Static pressure manometer (acrylic body)
- Cock for gas included
- Class 100 clean work area

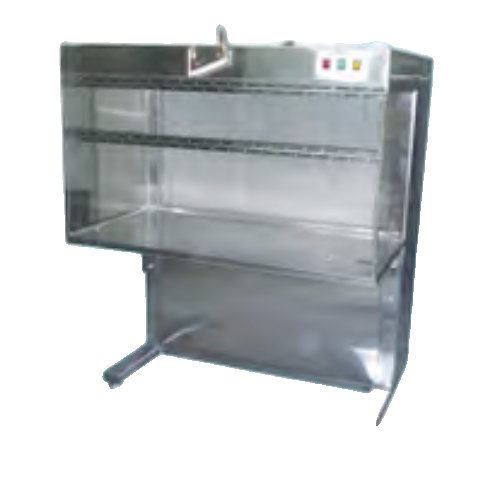

Laminar Air Flow Bench (Stainless Steel 304)
Model: MLA-100STechnical Specifications
Complete body made of Stainless Steel 304 sheet, reinforced with Stainless Steel Pipe. Designed for horizontal/vertical cabinet operations. Suitable for laboratory, medical, and pharmaceutical applications.
| Work Space (L × W × H) | HEPA Filter | FTL | UV Light |
|---|---|---|---|
| 2′ × 2′ × 2′ ft. | 2′ × 2′ × 6″ | 1 × 20 W | 1 × 15 W |
| 3′ × 2′ × 2′ ft. | 3′ × 2′ × 6″ | 2 × 20 W | 1 × 15 W |
| 4′ × 2′ × 2′ ft. | 4′ × 2′ × 6″ | 2 × 20 W | 1 × 30 W |
| 6′ × 2′ × 2′ ft. | 3′ × 2′ × 6″ × 2 nos. | 2 × 40 W | 1 × 30 W |
| Model | Construction | Reinforcement | Applications |
|---|---|---|---|
| MLA-100S | Stainless Steel 304 | Stainless Steel Pipe | Lab, Medical, Pharma |
Discover our full range of lab equipment including Furnaces, Shakers, Cabinets, and more. Download our brochure now!
Biosafety Cabinet (Stainless Steel 304)
Model: MBC-100STechnical Specifications
Bench made of Stainless Steel 304 grade with transparent front door. Work table covered with stainless steel perforated sheet. Supplied with Super Air H.E.P.A. Filters (99.97% down to 0.3 microns) protected by grill. Blower assembly: ½ HP Electric Motor with balanced blowers (noise & vibration free). 70% air recirculated, 30% exhausted through VIRUS BURNOUT UNIT (HEPA + UV Tube) before entering atmosphere (Type A2). Microprocessor LCD controller with automatic UV sterilization when door closed. Filters: Use & change time alarm, static pressure manometer (acrylic body), cock for gas, 10ft exhaust ducting.
| Size (L×W×H) | HEPA Filter | FTL | UV Light |
|---|---|---|---|
| 3' × 2' × 2' | 3' × 2' × 6" – 1 no. | 2 × 20W | 1 × 15W |
| 4' × 2' × 2' | 4' × 2' × 6" – 1 no. | 2 × 20W | 1 × 30W |
| 6' × 2' × 2' | 3' × 2' × 6" – 2 nos. | 4 × 20W | 1 × 30W |
Optional
- Digital air velocity meter (0–200 fpm)
- Digital differential pressure gauge
Fume Hood
Model: MFH-100 GTechnical Specifications
Auto by-pass type fume hood model, ideal for academic & research institutions. Outer Body: GI Sheet with powder coated finish. Vertical Sash: Counter-balanced, toughened float glass for impact resistance; smooth, light sash operation; removable hinged top panel. Inner Walls: High chemical resistant laminated finish.
| Model | Type | Outer Body | Sash Type | Inner Walls | Electrical | Utilities |
|---|---|---|---|---|---|---|
| MFH-100 G | Auto By-pass | GI Sheet Powder Coated | Counter-balanced Toughened Glass | Chemical Resistant Laminated | Factory Wired Sockets & Switches | PP Sink with Granite Top |
Features
- Ideal for academic & research institutions
- Smooth, light sash operation
- Removable hinged top panel
- Fire retardant wires
- Built-in starter for blower
- High quality Indian service valves
- Brass fittings color coded for gas
Optional
- Apparatus Grid: For suspending laboratory equipment
- Base Cabinet: Storage for apparatus & chemicals, fitted with castor wheels
Fume Hood (Stainless Steel 304)
Model: MFH-100STechnical Specifications
Chamber made of Stainless Steel 304 with exhaust system. Storage compartment made of GI sheet duly powder coated. Available in various sizes to meet different laboratory requirements.
| Work Space | Exhaust Duct | FTL |
|---|---|---|
| 4' x 2' x 2' | 4" | 2 × 20 W |
| 6' x 2' x 2' | 4" | 1 × 40 W |
| 7' x 2' x 2' | 4" | 1 × 40 W |
| Model | Chamber Material | Storage Compartment | Available Sizes |
|---|---|---|---|
| MFH-100S | Stainless Steel 304 | GI Sheet Powder Coated | MFH-100 G / MFH-100 S / MFH-100 |
Note: Any other size as per customer order can also be fabricated.
