other products
Digital pH Meter
Model: MPM - 20Technical Specifications
- • pH measurement range: 0–14.00 pH.
- • Resolution: 0.01 pH for precise readings.
- • Temperature compensation available (Manual/Auto).
Conductivity Meter
Model: MCM - 10Technical Specifications
- • 3-digit LED display for clear readings.
- • Automatic temperature compensation for accurate measurements.
- • Digital cell constant provided.
- • Supplied with conductivity cell and temperature probe (table model).
Potentio Meter
Model: MT-32Technical Specifications
- • Digital potentiometer for Redox potential measurement.
- • 3½ digit LED display with measurement range 0 to 1999 mV.
- • Resolution: 1 mV, Accuracy: ±1%.
- • Power supply: 230V ±10% AC.
Bomb Calorimeter (Digital)
Model: MBC - 30Technical Specifications
- Provides a simple and cost-effective method to determine heat of combustion of organic matter, calorific value, and sulphur content of solid & liquid fuels.
- Complete outfit supplied for analysis as per British Standard Institution BS 1016.
- Each bomb tested hydraulically at 300 atmospheres (4400 psi) for 10 minutes with works certificate ensuring no leakage.
- Calorimeter Vessel: Copper vessel, chromium plated or stainless steel, includes bomb support.
- Water Jacket: Outer container made of stainless steel with bakelite combined lid on top.
- Offset Stirrer: Impeller stirrer driven at approx. 800 RPM for effective turbulence and mixing.
- Electronic Firing Unit with Digital Beckmann Thermometer: Precise temperature measurement and electronic firing of samples.
- Crucible: Stainless steel crucible of 8 ml capacity, fits standard support ring.
Automatic Bomb Calorimeter
Model: MBC-30ATechnical Specifications
- • Same as MBC-30, but equipped with Microprocessor-based Automatic Firing & Control Unit.
- • 128×64 graphical LCD display for clear readout.
- • 20 keys keypad for easy operation.
- • Temperature resolution: 0.01°C for high precision measurements.
- • 1000 logs internal memory with date and time stamps.
- • Built-in thermal printer for immediate printout.
- • USB interface to transfer data directly to PC.
- • Real-time clock with battery backup.
- • Automatic measurement and calculation of calorific value & water equivalent.
Infrared Moisture Balance
Model: MIR-1Technical Specifications
- • Used for determination of moisture content in materials that do not undergo chemical changes under infrared radiation.
- • Instrument consists of a 250 watts infrared lamp, sensitive torsion balance, and electronic regulator/transformer heat control device.
- • Housed in a compact cabinet for easy handling.
- • Directly calibrated in percentage of moisture from 0% to 100%.
- • Capacity options: 5 gm, 10 gm, 20 gm.
UV Cabinet
Model: MUV-30 / MUV-40Technical Specifications
The U.V. Cabinet is made of mild steel sheet duly powder coated. It is fitted within 3 Nos. of tubes short-wave (254nm) + long-wave (365nm) + Fluorescent light. The Cabinet, with separate on / off switches for each tube light. The samples can be placed in the cabinet from the front door and viewed from the viewing window at the top of the cabinet.
MUV-40: Same as above but with short wave filter.
Hydraulic Press (Hand Operated)
Model: MHP - 12Technical Specifications
- Compact laboratory hydraulic press capable of producing force up to 12 tons.
- Hand-operated design, ideal for laboratory and small-scale sample preparation.
- Commonly used for making pellets and similar laboratory applications.
- Equipped with a precision pressure gauge and manual operating lever.
- Supplied without die.
All Glass Double Distillation Unit
Model: MHDU-3 / MVDU-1Technical Specifications
- • Horizontal Model: 3.5 liters per hour with electronic low water level cut-off.
- • Vertical Model: 1.5 liters per hour with electronic low water level cut-off.
- • Suitable for laboratory distillation of water and other solvents.
- • Fully made of high-quality glass for chemical resistance and visibility.

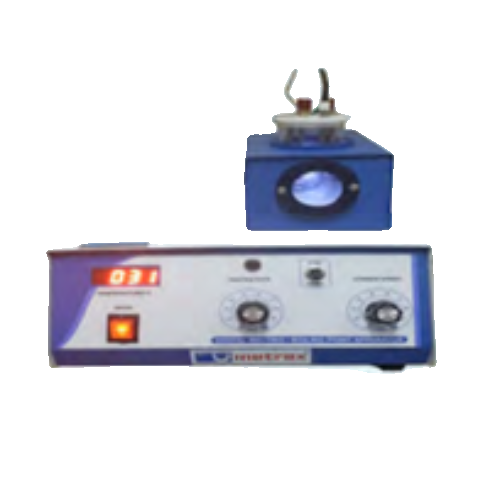

Digital Melting Point Apparatus
Model: MT-115Technical Specifications
- • Digital Melting Point Apparatus with in built Silicon Oil Bath and Stirrer adjustable heating rate and stirrer speed.
- • Range upto 275°C with readability of 1°C
Colony Counter
Model: MCC-4Technical Specifications
- • 100 mm diameter lens covers the entire illumination field for accurate observation.
- • Magnification ensures highly accurate colony counting results.
- • Maximum colony count possible up to 9999.
- • LED display with touch marking pencil for easy operation.
Discover our full range of lab equipment including Furnaces, Shakers, Cabinets, and more. Download our brochure now!
Ultrasonic Homogenizer (Probe Sonicator)
Model: MSTechnical Specifications
Ultrasonic Homogenizers are recommended for homogenization and lysis of laboratory samples that do not require traditional grinding or rotor-stator cutting techniques. The METREX Ultrasonic Homogenizers offer precision engineering in digital laboratory applications. The Probe Sonicator is suitable for disruption of bacterial, fungal, animal, or plant cells, as well as for emulsification of immiscible liquids or for acceleration of chemical reactions. It provides faster and more efficient means of mixing, blending, homogenizing, dispersing, and dissolving with ease of operation. Available in LCD or LED control unit (as ordered).
Major Functions
- Automatic protection and convenience for user
- Ultra-small volume working time from 1 sec to 99 hrs, 59 min
- Directly set ultrasonic power, time, and temperature
- Adjust amplitude and pulse duty according to different samples
- Temperature detection and protection for temperature-sensitive samples
- LCD display control, flexible and convenient operation
- Displays total working time and real-time sound wave power
Common Applications
- Homogenize tissue, plant tissues, immiscible liquids
- Accelerate chemical reactions and crystallizations
- Stimulate bacterial activity
- Cell, bacterial, yeast, and mammalian cell lysis
- Dispersion of particles, breaking emulsions, degassing liquids
- Extraction of DNA, RNA, and proteins
Technical Parameters
| Ultrasonic Power | 150W – 750W adjustable |
| Frequency | 20–25 KHz (auto adjustment, ±0.5 KHz) |
| Timer | 1 sec – 99 hrs, 59 min |
| Amplitude Adjustment | 40–100% adjustable |
| Display Mode | LCD / LED digital display (as ordered) |
| Temperature Control Range | -20°C to 200°C |
| Probe Material | Titanium alloy (imported), PTFE/Ceramics optional |
| Optional Probe Sizes | Ø2mm, Ø3mm, Ø6mm, Ø8mm, Ø10mm, Ø13mm, Ø20mm |
| Optional Display | 4-line LCD / LED Digital |
| Power Supply | 230V AC |
| Model | Capacity | Ultrasonic Power | Frequency | Power Supply | Probe Size |
|---|---|---|---|---|---|
| MS / 150 | 0.2 ml – 150 ml | 150 W | 20 KHz | 230 V AC | Ø2, Ø3, Ø6 mm |
| MS / 250 | 0.5 ml – 250 ml | 250 W | 20 KHz | 230 V AC | Ø3, Ø6 mm |
| MS / 500 | 10 ml – 500 ml | 500 W | 20 KHz | 230 V AC | Ø6, Ø8, Ø10 mm |
| MS / 750 | 20 ml – 750 ml | 750 W | 20 KHz | 230 V AC | Ø13, Ø17 mm |
Sound Enclosure
Sonication produces high-pitch noise which can cause discomfort to users. The sound enclosure is designed to reduce noise by 20 dB or more and is made from acrylic material for clear visibility of the probe and sample. It accommodates all standard size probes, ensuring a quiet and safe laboratory environment.
Advance-series environment chamber (advance)
Model: MEC-ATechnical specifications
- The chamber is aesthetically design with most latest technology and software.
- 7 inch tft touch screen hmi with display of temp., humidity & illumination, plc based programmable controller, 4 program upto 10 steps (total 40 steps) for each profile to control each parameter such as temperature, humidity & illumination individually, for day and night.
- inside chamber of heavy gauge stainless steel 304 with ss trays. outer body of mild steel, powder coated.
- audio visual alarm for all three parameters of light, temperature & humidity with manual set option for the limit.
- programmable auto simulation of all parameters (light, temperature & humidity) same as like environment, inside the working chamber.
- user friendly programs for complete control of all / any parameter during the experiment.
- double wall door with observation window.
- power backup system (30 min) to read out the running experiment parameters during power failure.
- specially designed compressor technology to get stable humidity in respect to the set temperature.
- three step illumination controlled through plc to control the photo periodic cycle of the chamber 24x7 with microprocessor based programmable automated day-night natural simulation system.
- high accuracy with advance technology for humidity and de-humidity control. the triple walled back of chamber provided with air circulation fans for uniform maintenance of the temperature & humidity throughout the chamber.
- high temperature protection to protect the samples by auto shut down the unit.
- temperature range 5°c to 60 ±0.5°c accuracy (light off) and 10°c to 60 ±0.5°c accuracy (light on) with humidity 45% to 95 =3% to 5% rh
- data logging of temp. & humidity with date & time in internal memory and can be transferred to usb pen drive. option for screen shot, web interface with complete operation from any other pc/laptop (through static ip)
- suitable number of led lamps to provide illumination.
Plant Growth Chamber (Advance)
Model: MGC (Advance)Technical Specifications
- • Plant Growth Chamber is aesthetically design with most latest technology and software.
- • Touch Screen HMI TFT Display with PLC having 4 Programme upto 10 steps (total 40 steps) steps for each profile to control each parameter such as temperature, humidity & illumination individually, for day and night.
- • Inside chamber of heavy gauge stainless steel 304 with SS trays. Outer body of mild steel, powder coated.
- • Audio visual alarm for all three parameters of light, temperature & humidity with manual set option for the limit.
- • Programmable auto simulation of all parameters (Light, Temperature & Humidity) same as like environment; inside the working chamber to grow plants like in nature.
- • User friendly programme for complete control of all/any parameter during the experiment.
- • Double wall door with observation window.
- • Specially designed compressor technology to get stable humidity in respect to the set temperature.
- • Three step illumination controlled through PLC to control the photoperiodic cycle of the chamber 24x7 with automated day-night natural simulation system. The result gives broad based light spectrum ideally suited for plant growth.
- • High accuracy with advance technology for humidity and de-humidity control. The triple walled back of chamber provided with air circulation fans for uniform maintenance of the temperature & humidity throughout the chamber.
- • High Temperature protection to protect the samples by auto shut down the unit.
- • Temperature range 5°C to 60 ±0.5°C accuracy (Light Off) and 15°C to 60 ±0.5°C accuracy (Light On) with humidity 45% to 95±3% to 5% RH
- • Data logging of temp. & humidity with date & time in internal memory and can be transferred to USB pen drive. Option for screen shot, web interface with complete operation from any other PC/Laptop (through static IP)
- • Suitable number of LED lamps to provide illumination from both sides.
- • The system is supplied with heavy duty wire mesh stainless steel trays.
Advance Series - B.O.D. Cooling Incubator (Advance)
Model: MBI - 50 ATechnical Specifications
The Advance Series B.O.D. Cooling Incubator is designed for precise and uniform temperature control. It features a double-walled construction with an inner chamber made of SS 304 and is equipped with an advanced LCD Touch Screen (HMI) with color display for temperature monitoring and data storage. The system can record and store temperature, date, and time data up to 10,000 records (3–4 days) in internal memory, which can be easily downloaded to a USB pen drive and viewed on a PC using Excel.
- Temperature Range: 5°C to 60°C
- Double-walled inner chamber made of SS 304
- LCD Touch Screen (HMI) with color display
- Data storage up to 10,000 records (Temp. + Date + Time)
- USB pen drive data download and Excel viewing compatibility
Optional Features
- Chamber illumination with 3 fluorescent tubes (60 cm) placed vertically along the back wall
- Separate ON/OFF switch for illumination tubes
- Temperature range with illumination ON: 10°C to 50°C
- Humidity attachment with stainless steel water tank at the bottom
- Digital humidity (% RH) controller
Technical Data
| Model | Volume (Cu.ft.) | Inner Working Space (H x W x D mm) | No. of Shelves | Temperature Range & Accuracy | Recommended Voltage Stabilizer |
|---|---|---|---|---|---|
| MBI-50 / MBI-50A | 4 Cu. Ft | 610 x 455 x 410 mm | 2 | 5°C to 60°C ± 0.5°C | 2 KVA |
| MBI-10 / MBI-10A | 10 Cu. Ft | 830 x 505 x 415 mm | 3 | 5°C to 60°C ± 0.5°C | 2 KVA |
| MBI-15 / MBI-15A | 12 Cu. Ft | 875 x 570 x 550 mm | 3 | 5°C to 60°C ± 0.5°C | 3 KVA |
| MBI-20 / MBI-20A | 15 Cu. Ft | 900 x 700 x 650 mm | 3 | 5°C to 60°C ± 0.5°C | 4 KVA |
Power Supply: 220 Volts, 50 Hz, single phase AC supply.
Refrigerated Incubator Shaker - PLC & HMI Based (Advance)
Model: MRS / MO (Advance)Technical Specifications
| Specification | Details |
|---|---|
| Construction | Double walls: Exterior GI sheet powder coated, Interior Stainless Steel 304 |
| Inner Door | Plexiglass for inspection without disturbing temperature |
| Outer Door | Double glass window with lock & key |
| Air Circulation | Positive airflow with fan, uniform temperature, perforated stainless steel adjustable trays |
| Illumination | 3 fluorescent tubes (30cm each) with cyclic timer, optional UV light |
| Shaking Motion | Orbital with variable frequency drive, gentle start/stop function |
| Temperature Range | 5°C to 60°C ±0.1–0.4°C (optional up to 80°C) |
| Speed Range | 20 to 300 RPM (optional up to 400 RPM) |
| Control System | PLC & HMI: 7” TFT Touch Screen with real-time Temp & RPM graphs, 4 programs × 10 steps, data logging, USB support, optional web interface for remote control |
| Safety | Auto visual alarm for high/low temp, RPM deviation, overshoot cut-off, MCB/Glass Fuse protection |
| Models & Capacity |
|
Willy Mill
Model: MLB-179 A / B / CTechnical Specifications
- Equipped with two stationary blades and a rotor having four cutting edges.
- Rotor revolves at high speed to produce efficient shearing action, minimizing moisture loss due to heat.
- Available in three sizes to suit various laboratory requirements:
- A) Small – fitted with ½ HP Motor
- B) Medium – fitted with 2 HP Motor
- C) Large – fitted with 1 HP Motor
- Supplied with interchangeable mesh sieves of 20, 40, and 60 sizes.
Ultrasonic Homogenizer (Probe Sonicator)
Model: MSTechnical Specifications
Ultrasonic Homogenizers are recommended for homogenization and lysis of laboratory samples that do not require traditional grinding or rotor-stator cutting techniques. Provides precision engineering with all the necessary features for ultrasonic disruption. Commonly used in biotechnology, pharmaceuticals, nanotechnology, and DNA/RNA extraction. Available in LED or LCD control unit (as ordered).
| Model | Timer Range | Temperature Adjustment | Transducer | Probe Material | Power Supply |
|---|---|---|---|---|---|
| MS | 1-90 min adjustable | Up to 99°C | Lead Zirconate Titanate (PZT) | Titanium Alloy | AC 230V, 50Hz |
Major Functions
- Auto-tuning and power control for convenience
- Timer control from 1 min to 30 min
- Display remaining time
- On/off impulse timer (5s, 15s, 45s, 85s)
- Simple, easy direct operation
Common Applications
- Prepare tissue, emulsions, and lysates
- Accelerate enzymatic/chemical reactions
- Stimulate bacterial activity
- Extract DNA/RNA, proteins, liposomes
- Dissolve powders, de-agglomerate samples
Probe Sizes Available
- 3mm diameter
- 6mm diameter
- 10mm diameter
- 12mm diameter
We Offer Scientific Solutions For Everyone
For any product inquiries or support
Metrex Scientific ensures innovation, accuracy, and reliability with every instrument we deliver.
